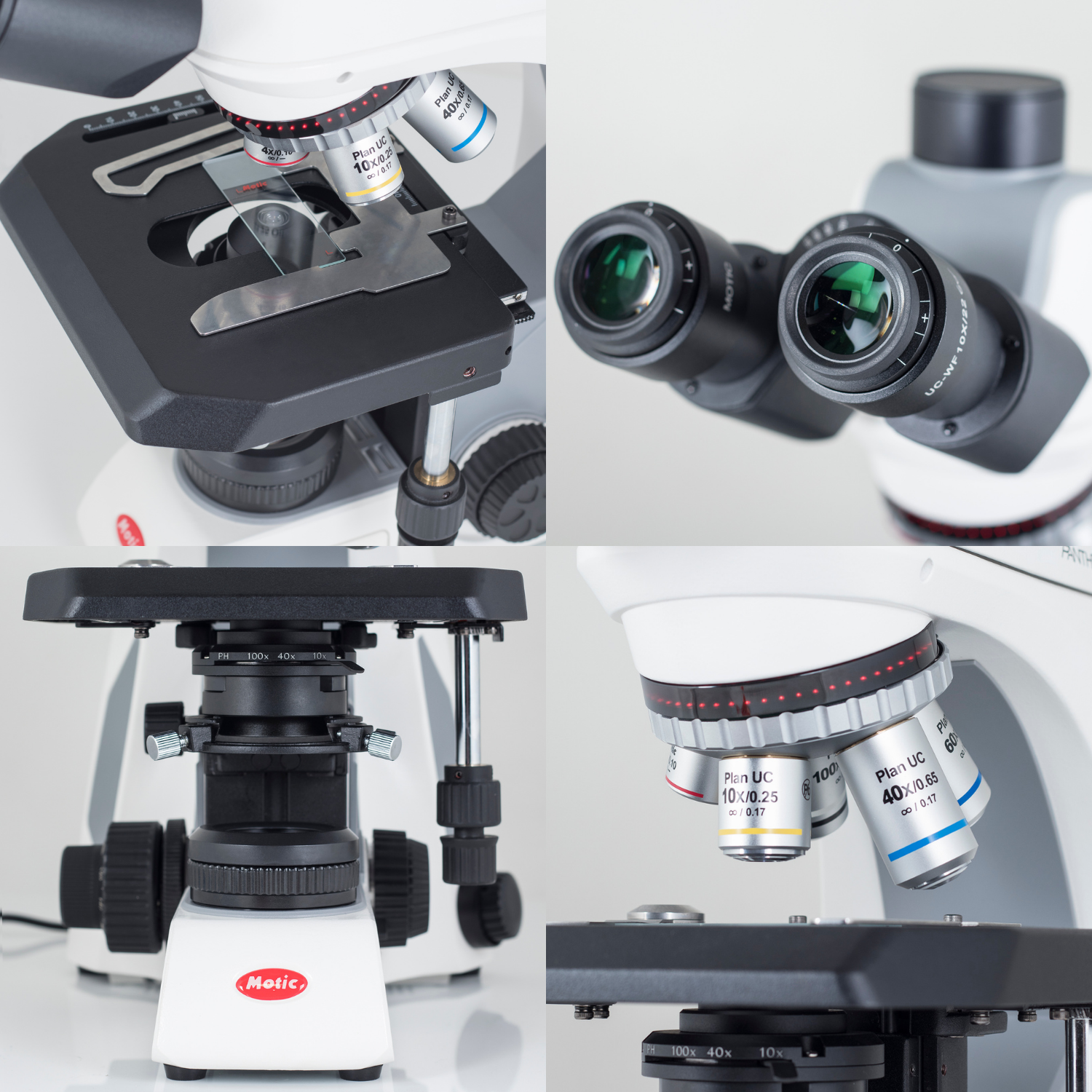

Panthera C2 with FITC Filter Fluorescence Bundle
$4,791
This fluorescence bundle comes with:
- Panthera C2 Trinocular 50:50
- FLED Fluorescence Accessory, FITC Filter
If it is about stained sections with cover glass protection, about native smears, fine needle biopsies, blood smears which wanted to be treated with or without cover glass: Panthera C2 with its selection of specified optics is your solution.
- Specifications
- Downloads
- Warranty
- Return Policy
- Reviews
| Model | Panthera C2 Trinocular |
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Inclination | 25° inclined, 360° swiveling |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded |
| Objective classification | CCIS® UC Plan Achromatic (Pb free) |
| Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 185x145mm |
| Travel range X&Y | 75x50mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2μm |
| Focusing stroke | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap |
| Transmitted illumination | Koehler LED 3W & Quartz halogen 6V/30W with intensity control |
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Other features | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module |
| Dimensions LxWxH | 282x210x396mm |
| Net weight | 8.4kg |
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
Specifications
| Model | Panthera C2 Trinocular |
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Inclination | 25° inclined, 360° swiveling |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded |
| Objective classification | CCIS® UC Plan Achromatic (Pb free) |
| Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 185x145mm |
| Travel range X&Y | 75x50mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2μm |
| Focusing stroke | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap |
| Transmitted illumination | Koehler LED 3W & Quartz halogen 6V/30W with intensity control |
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Other features | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module |
| Dimensions LxWxH | 282x210x396mm |
| Net weight | 8.4kg |
